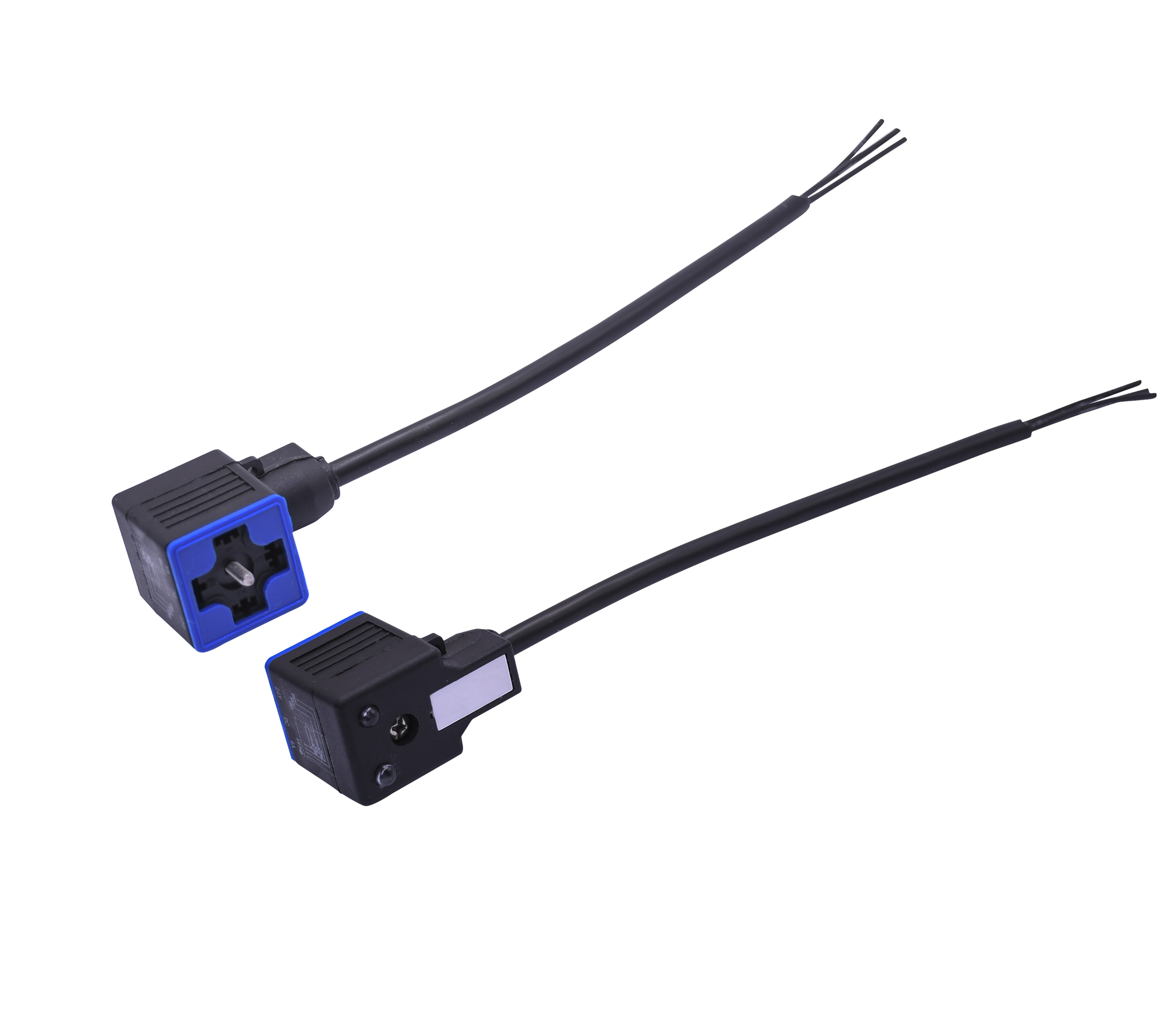

A type 18mm double coil single lamp solenoid valve plug

Performance parameters

Name: Type A 18mm Dual Coil Single Lamp Solenoid Valve Plug

Specification Model: TM3250-18002-0030

Material Code: TM2023003

Voltage: 24DC/AC

Working Current: 4A

Protection Grade: IP67/ IP68 (Top Screw with Added Waterproof Seal)

Meets the technical requirements EN175301-803

Single LED Red/Green Indicator Light

Customizable Common Anode and Common Cathode Control

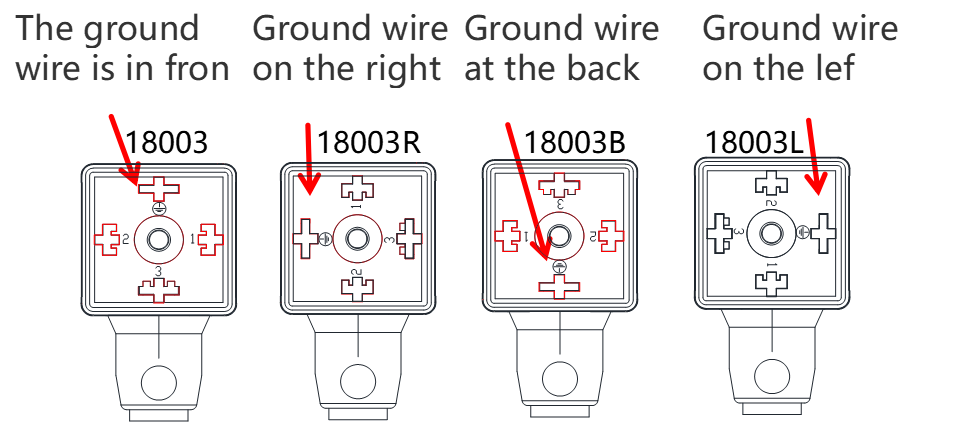

Custom Ground Wire at Any Position

Wire Material: PVC 3×0.75 (AWG18) 0.3m

Temperature Resistance: Fixed ：-30℃-80℃

                                          Mobile: -5℃-80℃

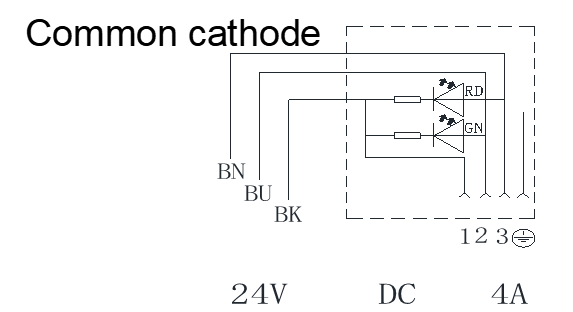

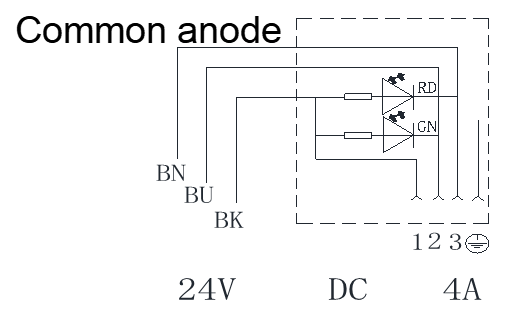

1 pin connect black wire, 2 pin connect blue wire, 3 pin connect brown wire;

1 pin connect power-, 2 pin connect power  red, 3 pin connect power  light green;
