Performance parameters
Name: M12 Male plug to A type 18mm solenoid valve plug
Specification model: M12 to DIN4650
Single coil code: TM3250-18012-1
Double coil code: TM3250-1801-2
Voltage: 24DC/AC
Working current: 4A
Protection level: IP67/ IP68 (top screw increases waterproof ring)
Meets the technical requirements of EN175301-803
Plug tail connected to M12 plug
Customizable single coil and double coilenoid valve plug
Customizable double LED universal plug

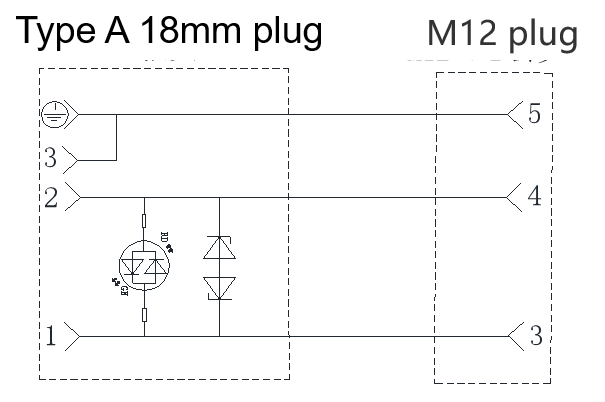

TM3250-18012-1

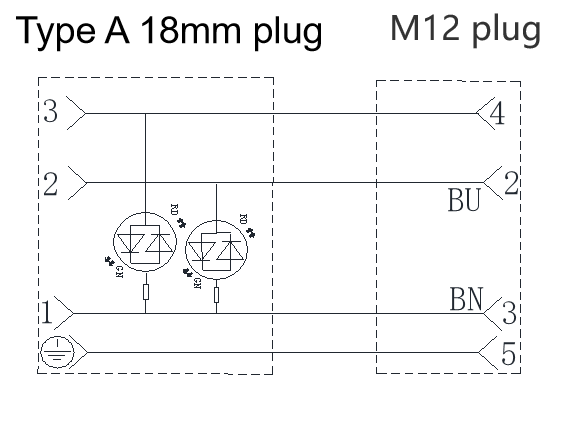

TM3250-1801-2
