Performance parameters

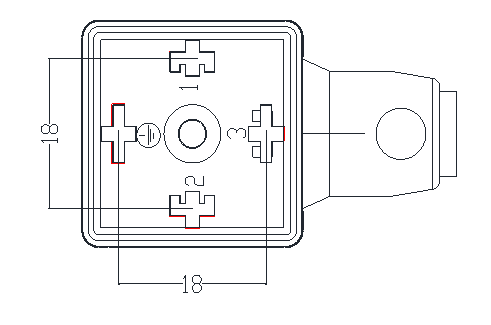

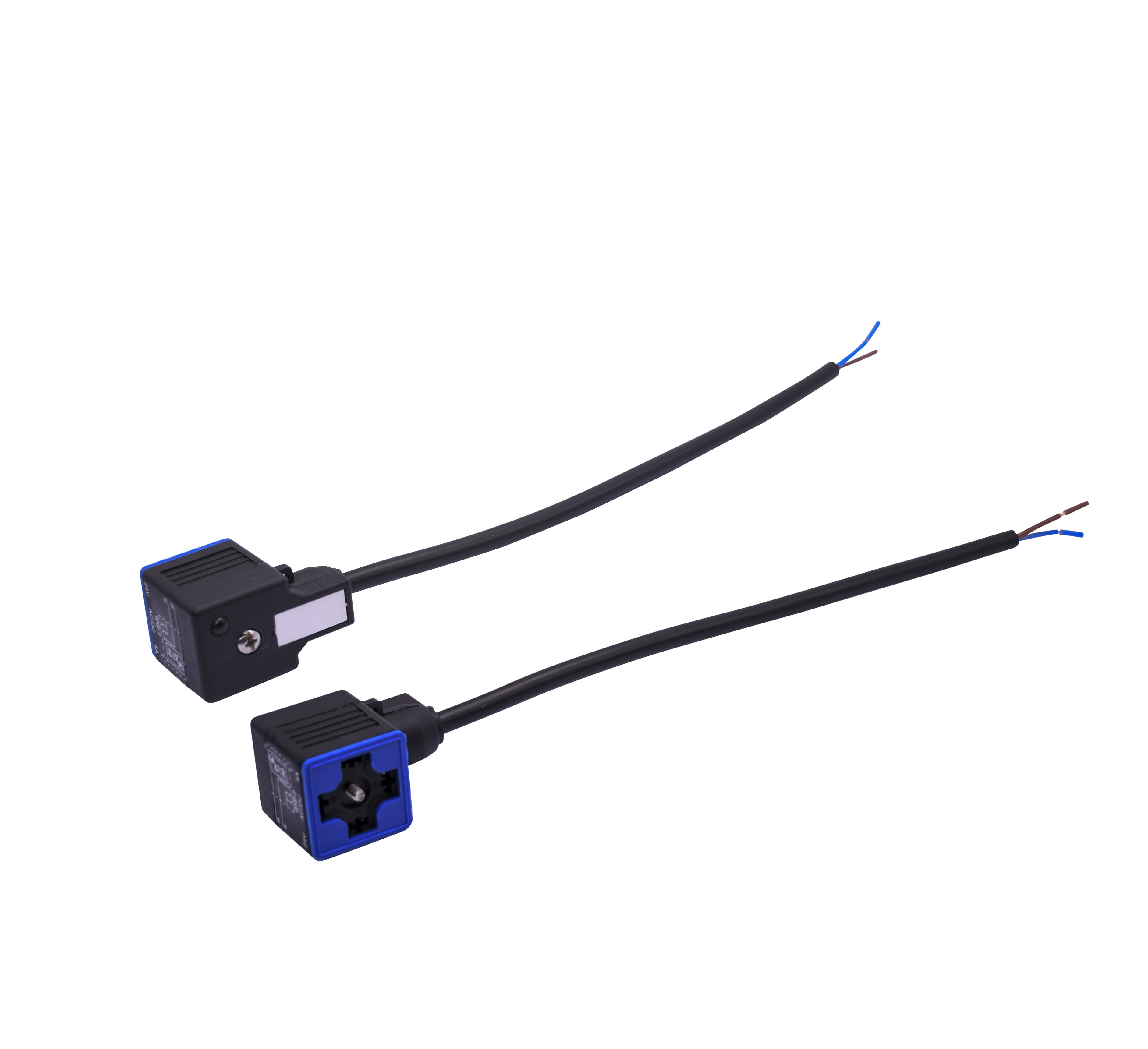

Name: A-type 18mm Square Three-pin Electromagnetic Valve Plug
Specification Model: TM3250-1001-0030
Material Code: TM2023002
Voltage: 24DC/AC
Working Current: 4
Protection Grade: IP67/ IP68 (Top Screw with Added Waterproof Seal)
Meets the technical requirements of EN175301803
Single LED Red/Green Indicator
Wire Material: PVC 2×0.75 (AWG18) 0.3m
Withstand: Fixed: -40℃-80℃
Movable: -5℃-80℃

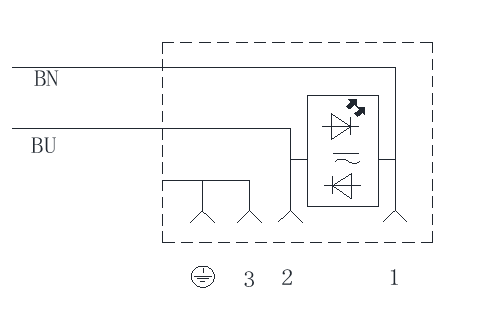

1 foot to brown wire, 2 foot to blue wire; brown to power red light, blue to power green light
Cable length | length specifications |
0.3Rice | 0030 |
0.5Rice | 0050 |
1Rice | 0100 |
1.5Rice | 0150 |
2Rice | 0200 |
3Rice | 0300 |
5Rice | 0500 |
