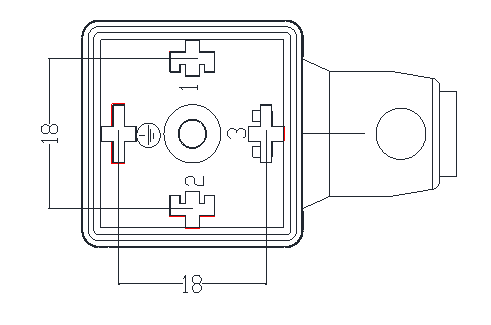

A type 18mm solenoid valve plug

A-type 18mm solenoid valve plug;

2-wire (replacement for 3-wire) solenoid valve (for standard hydraulic valves, single coil);

Performance parameters:

Name: A-type 18mm solenoid valve plug;

Specification model:3250-18001-0030;

Material code: TM2023002;

Voltage: 4DC/AC;

Working current: 4A;

Protection level: IP67/ IP68 (with waterproof seal ring added to the top);

Complies with the technical requirements of EN175301-803;

Single LED red/green indicator light;

Wire material PVC 2×0.75 (AWG18) 0.3m;

Temperature resistance: Fixed: -40℃-80℃

                                      Movable: -5℃-80℃
