Structural features:
3-hole end: Typically an AMP standard plug (3-core), used to connect the controller power supply.
Square end: Matches common solenoid valve interfaces (such as DIN standard or manufacturer-specific interfaces, like Eaton, Dipma etc.).
Adapter function: Converts the electrical signal of the AMP plug into a pluggable interface for the solenoid valve, simplifying wiring.
Interface description
AMP end (3-hole):
Single coil pin definition: 1=Positive ( ), 2=Negative (-), 3=round or floating.
Double coil pin definition: 1=Negative (-), 2=Coil A, 3=Coil B
Standard AM plug with a latch design to prevent vibration from causing it to fall off.

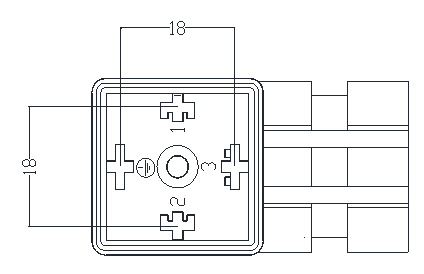

Square end (solenoid valve interface):
Adapts to common squareshaped plugs (such as DIN 43650 Form A/B/C or manufacturer-specific interfaces).
May have a keyway to prevent incorrect.

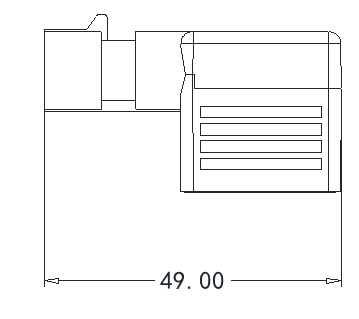

Performance parameters
Name: 3-hole AMP to Square Solenoid Valve Adapter Plug
Specification model: 3-hole AMP DIN43650
Single coil code: TM3250-18004-1
Double coil code: TM3250-18004-2
Voltage: 24DC/AC
Working current: 4A
Protection level: IP67/68 (with waterproof seal ring added to the top screw)
Meets the technical requirements of EN175301-803
Connects the AMP282105-1 plug at the tail of the plug
Customizable single coil and double coil solenoid valve plug
Customizable LED universal plug
TM3250-18004-1（1 pin connect to power red light on, 2 pin connect to power green light on）
TM3250-18004-2（1 pin to power -, 2 pin to power red light, 3 pin to power green light）
