Performance parameters

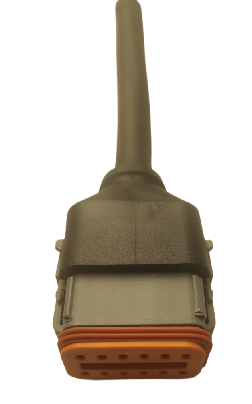

Name: 12-hole Deutsch DT06-12S cast tail female plug
Specification model: TT0612S-0030 cast tail plug
Material code: TM2024007
Voltage: 24DC/AC
Working current 4A
Protection level: IP68
Compliant with the technical requirements of EN175301-803
Wire: PVC 1×0.75 (AWG18) 0.3m (1-12 wire numbers sprayed on the line)
Temperature resistance: Fixed: -0℃-80℃
Mobile: -5℃-80℃
cable length | length specifications |
0.1Rice | 0010 |
0.3Rice | 0030 |
1Rice | 0100 |
1.5Rice | 0150 |
2Rice | 0200 |
3Rice | 0300 |
5Rice | 0500 |
