Performance parameters

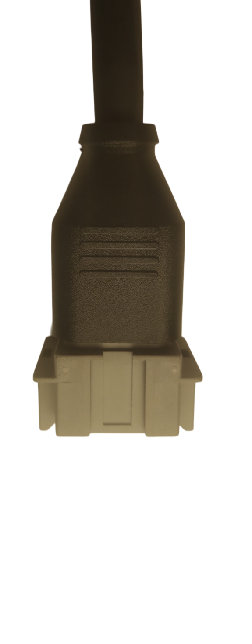

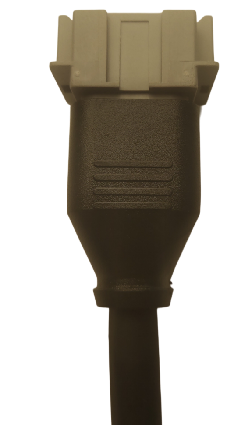

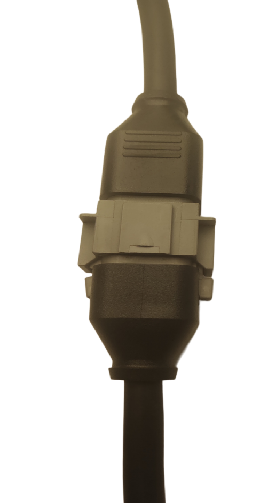

Name: 8-hole Deutsch DT04-8P cast tail male plug
Specification model: TT04-8-0030 cast tail plug
Material code: TM2024006
Voltage: 24DC/AC
Working current: 4
Protection level: IP68
Comply with the technical requirements of EN175301-803
Wire: PVC 8×0.7 (AWG18) 0.3m (1-8 wire numbers sprayed on the line)
Withstand temperature: Fixed: -40℃-80
Mobile: -5℃-80℃
cable length | length specifications |
0.1Rice | 0010 |
0.3Rice | 0030 |
1Rice | 0100 |
1.5Rice | 0150 |
2Rice | 0200 |
3Rice | 0300 |
5Rice | 0500 |
