Performance parameters

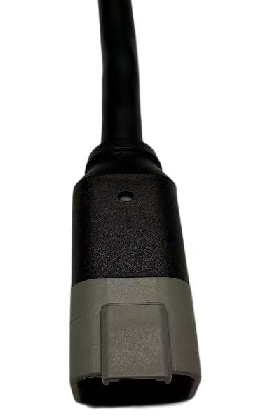

Name: 4-hole Deutsch DT04-4P cast tail male plug
Specification model: TT04-4P tail plug, TT04-4P illuminated plug
Material code: TM2023012
Voltage: 24DC/AC
Working current 4A
Protection level: IP67
Compliant with the technical requirements of EN175301-803
Dual-color red/green indicator, perfect replacement for the flyback diode
Cable: PVC 4×0.75 (AWG18) 0.2m ( PUR cable)
Withstand temperature: Fixed: -40℃-80℃
Mobile: -5℃-80℃
cable length | length specifications |
0.1Rice | 0010 |
0.3Rice | 0030 |
1Rice | 0100 |
1.5Rice | 0150 |
2Rice | 0200 |
3Rice | 0300 |
5Rice | 0500 |
