Performance parameters

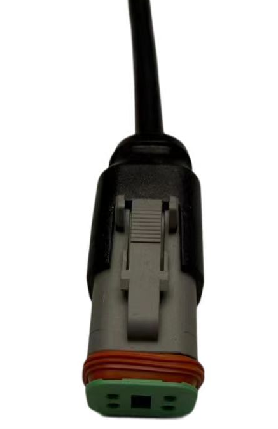

Name: 4-hole Deutsch DT06-4S cast tail female plug
Specification model: TT06-4S tail plug, TT06-4S plug with light
Material code: TM2023011
Voltage: 24DC/AC
Working: 4A
Protection level: IP67
Comply with the technical requirements of EN175301-803
Dual-color red/green indicator, perfect replacement for the flyback diode
Wire material: PVC 4×0.75 (AWG18) 0.2m ( PUR cable)
Temperature resistance: stationary: -40℃-80℃
mobile: -5℃-80℃
cable length | length specifications |
0.1Rice | 0010 |
0.3Rice | 0030 |
1Rice | 0100 |
1.5Rice | 0150 |
2Rice | 0200 |
3Rice | 0300 |
5Rice | 0500 |
