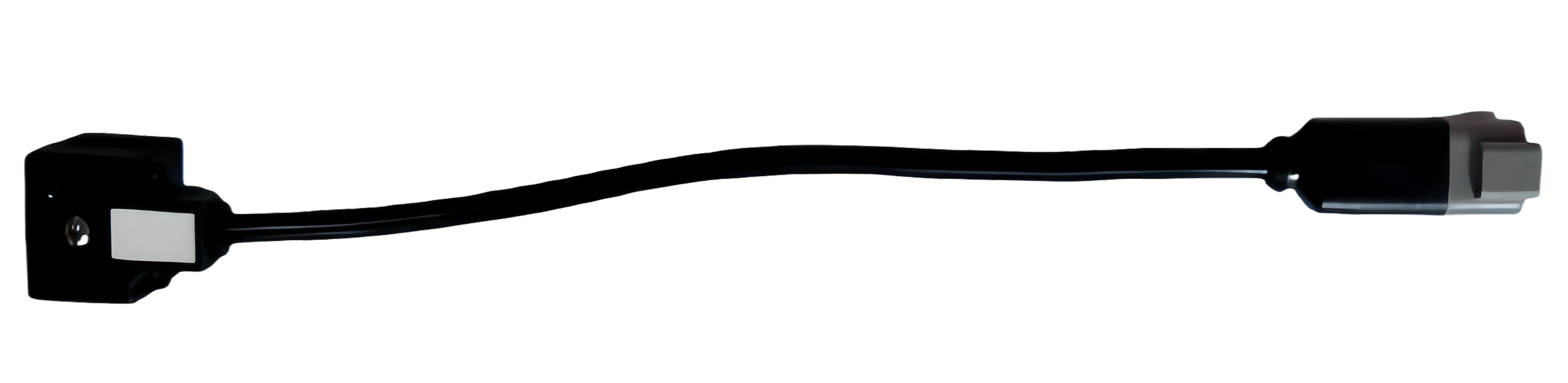

A type 18mm to DT04-2P precast integrated cable harness

Performance parameters

Name: A-type 18mm to DT04-2P precast integrated cable harness

Specification model: TM320-18022-0030

Material code: TM2023022

Voltage: 24 DC/AC

Working: 4 A

Protection level: IP67

Complies with the technical requirements of EN175301-803

Single LED red/green light

Wire: PVC 2×0.75 (AWG18) 0.3m

Temperature resistance: Fixed: -40℃-8℃

                      Mobile: -5℃-80℃

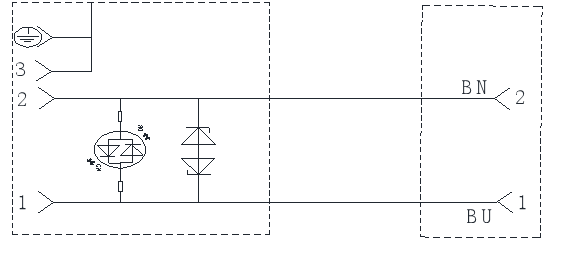

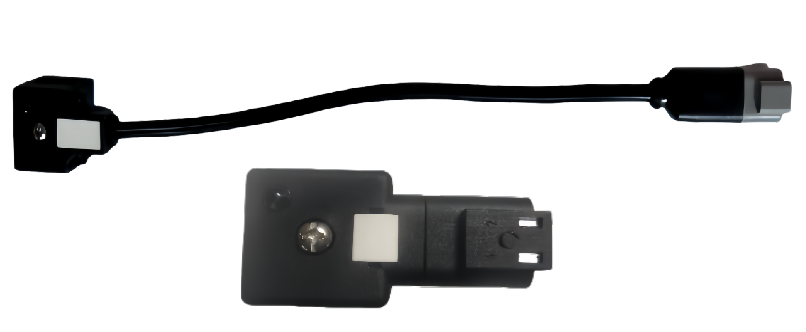

    Type A 18mm plug                                                       DT04-2P
