Performance parameters

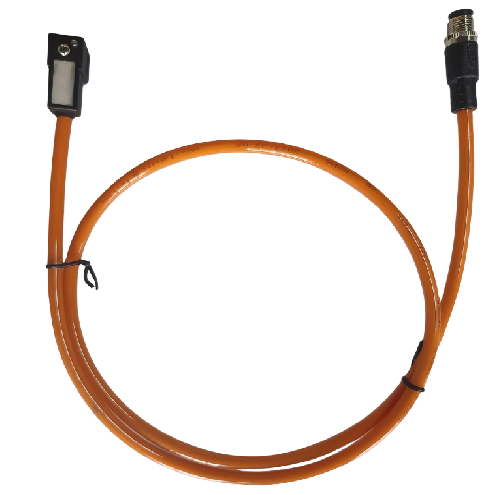

Name: M12 male to C-type 9.4mm precast integrated cable harness;
Specification model: TM-M1-94001-0100
Material code: TM2023018
Voltage: 24DC/AC
Working current: 4A
Protection level: IP67
Comply with the technical requirements of EN175301-803

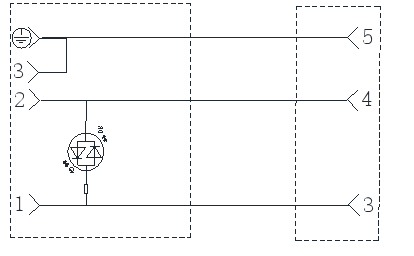

Dual-color LED red/green indicator light, a perfect alternative to the flyback diode
Wire: PUR 3×0.75 (AWG18 1m anti-solder splash cable
Temperature resistance: Fixed: -40℃-80℃
Mobile: -5℃-80

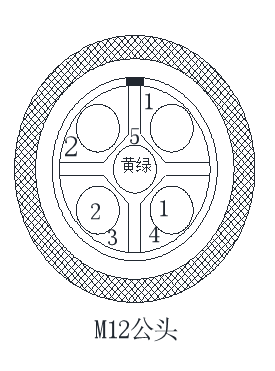

C type 9.4mm plug M12-5 core male plug
cable length | length specifications |
0.3 Rice | 0030 |
0.5 Rice | 0050 |
1 Rice | 0100 |
1.5 Rice | 0150 |
2 Rice | 0200 |
3 Rice | 0300 |
5 Rice | 0500 |
