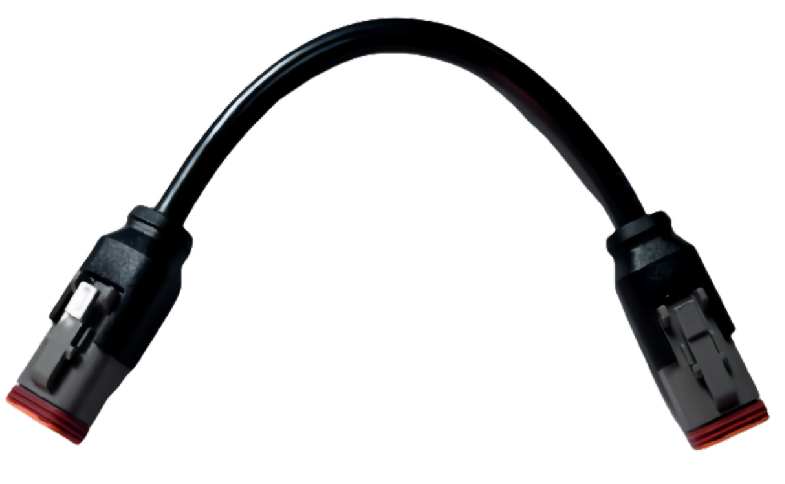

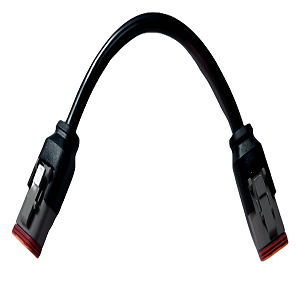

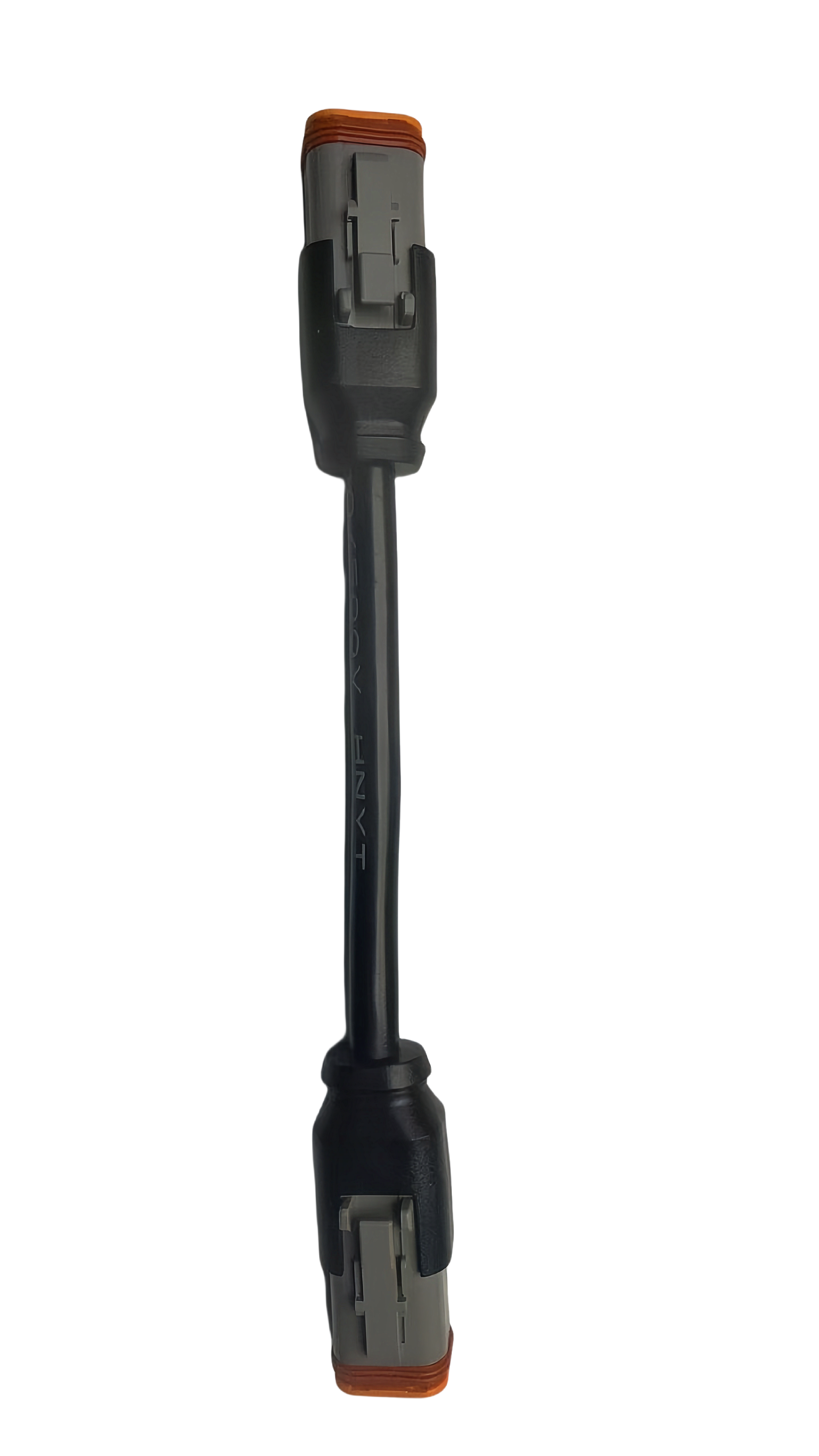

4-hole Deutsche dual-headed cast tail connector cable assembly

4-hole Deutsch dual-ended cast tail connector cable

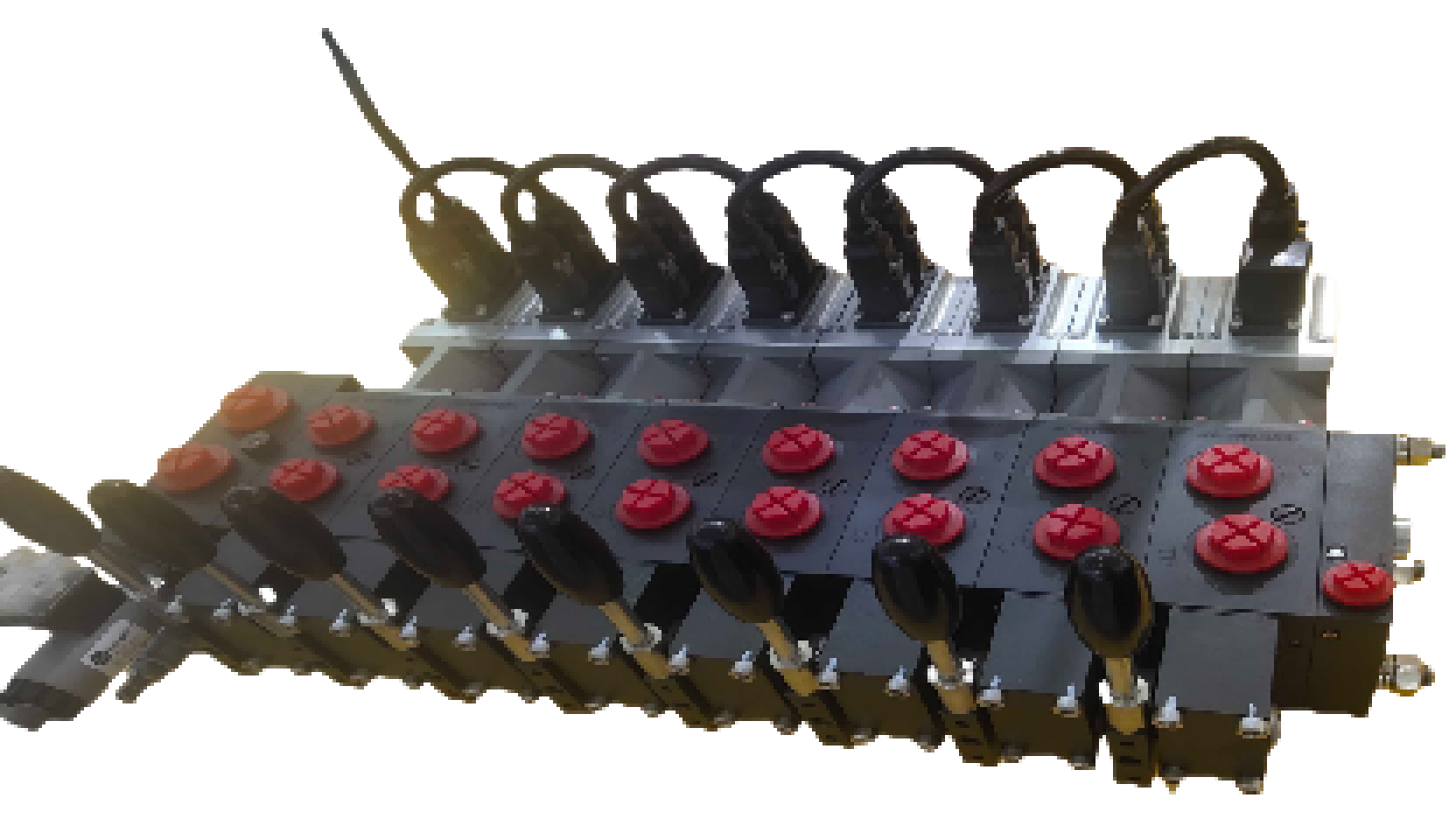

(CAN bus multi-valve connection cable)

Core features

✅High protection level

Meets IP67/IP69K standards, dustproof, waterproof, and resistant to high-pressure rinsing, suitable for the harsh conditions of construction machinery.

✅ Anti-interference CAN bus design

Using 4-core 1 square cable, effectively suppresses electromagnetic interference (EMI) ensuring stable CAN bus communication.

Optional gold-plated terminals, reduce contact resistance, and improve the reliability of signal transmission.

✅ Dual-ended cast tail structure

Both ends of the connector adopt an integrated molding cast tail sheath, enhancing the cable's ability to withstand tension and bending, preventing the core from breaking due to longterm vibration.

✅ Oil and high temperature resistance

The cable jacket is made of oil-resistant PUR/PVC material, suitable for a working temperature range of -0°C ~  105°C.

✅ Quick plug and unplug

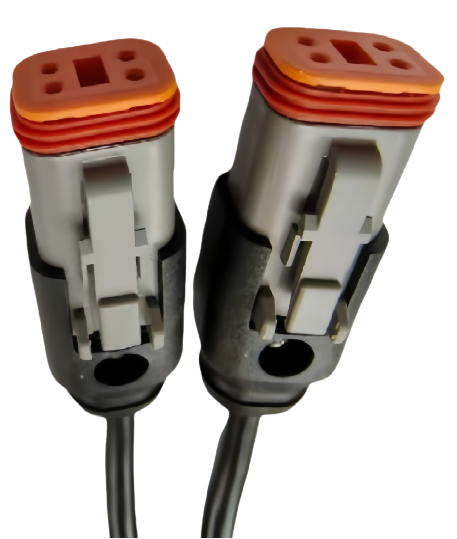

Deutsch connectors' push-pull locking mechanism ensures a secure connection and prevents disconnection.

Performance parameters

Name: 4-hole Deutsche dual-headed cast tail connector cable assembly

Specification model: 2TT06-4S0020

Material code: TM2023019

Voltage: 24DC/AC

Working current: 4A

Protection: IP67

Complies with the technical requirements of EN175301-803

Can be customized with custom pins with LED lights

Cable: PVC 4×1 (AWG16) 0.2m (L length can be customized)

Withstands temperatures: Fixed: -40℃-0℃

                      Mobile: -5℃-80℃

Suitable for CAN bus connection cable assembly
