Performance parameters

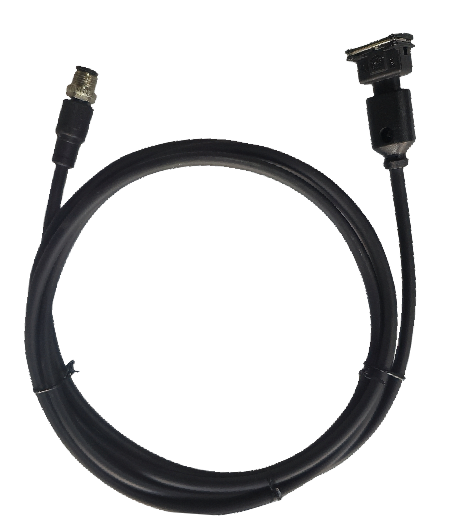

Name: M12 male head to AMP with light precast integrated cable
Specification model: TM-M12-28189-0100
Material code: TM2023014
Voltage: 24DC/AC
Working current: 4
Protection level: IP67
Comply with the technical requirements of EN175301-803
Dual-color LED red/green light, a perfect replacement for the flyback diode
Wire: PVC 2x0.75 (AWG18) 1m (optional PUR cable)
perature resistance: Fixed: -40℃-80℃
Mobile: -5℃-80℃
cable length | length specifications |
0.3 Rice | 0030 |
0.5 Rice | 0050 |
1 Rice | 0100 |
1.5 Rice | 0150 |
2 Rice | 0200 |
3 Rice | 0300 |
5 Rice | 0500 |
