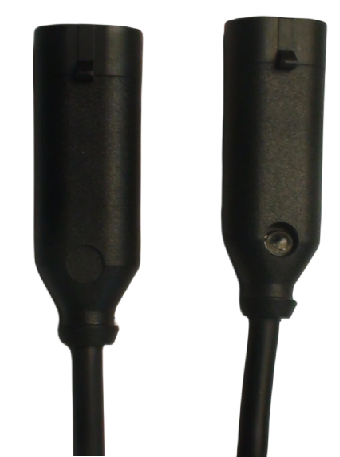

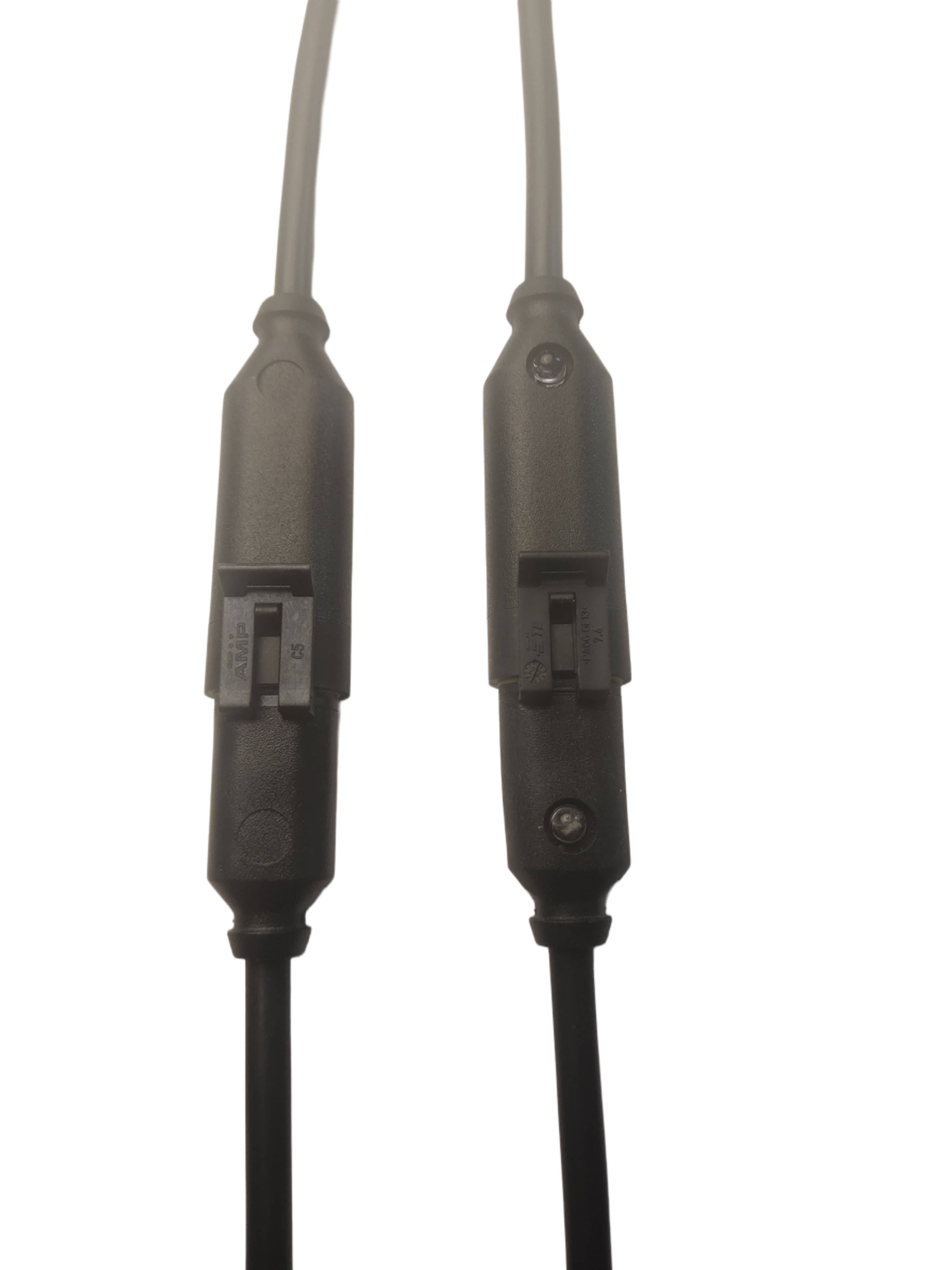

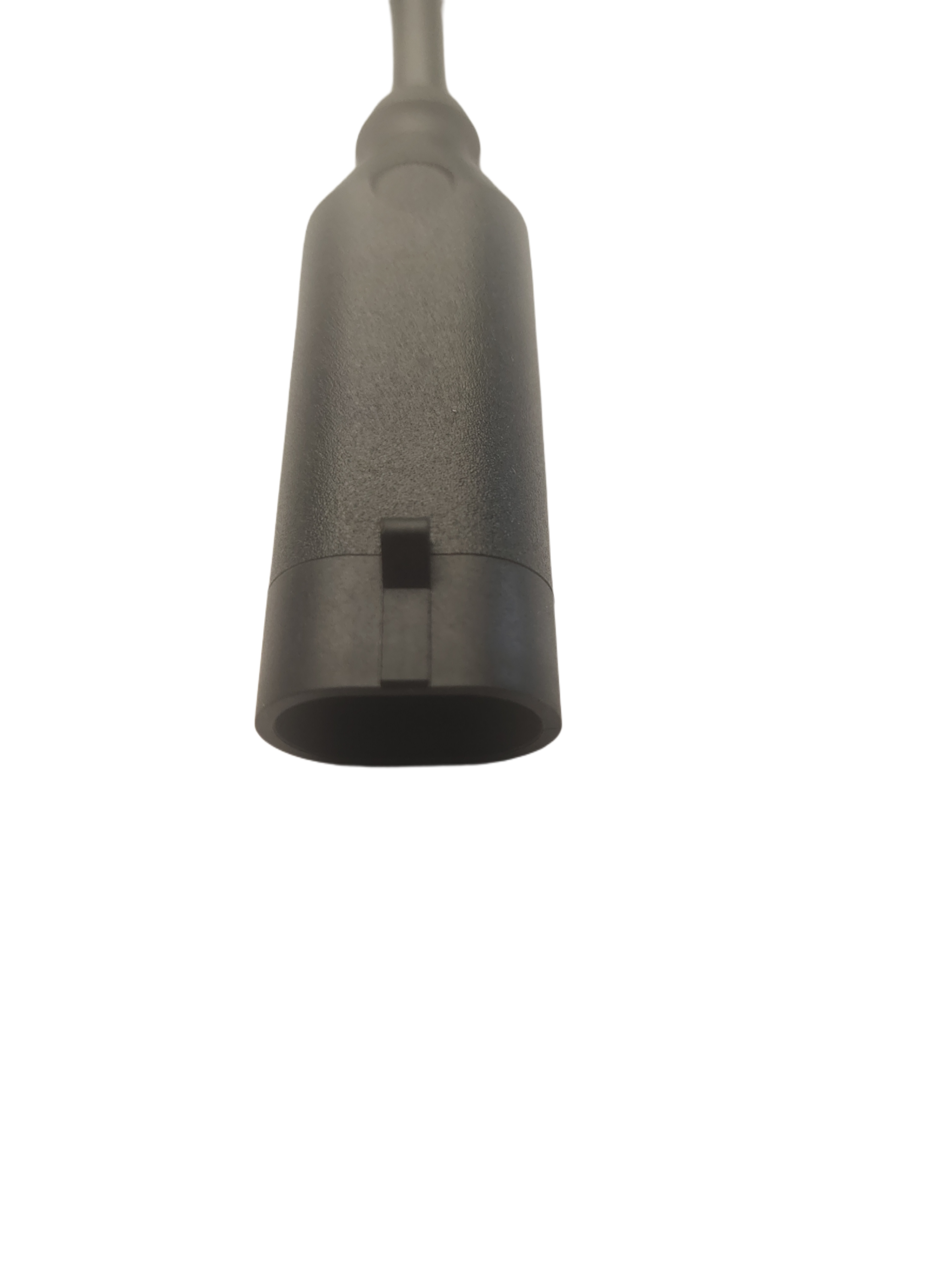

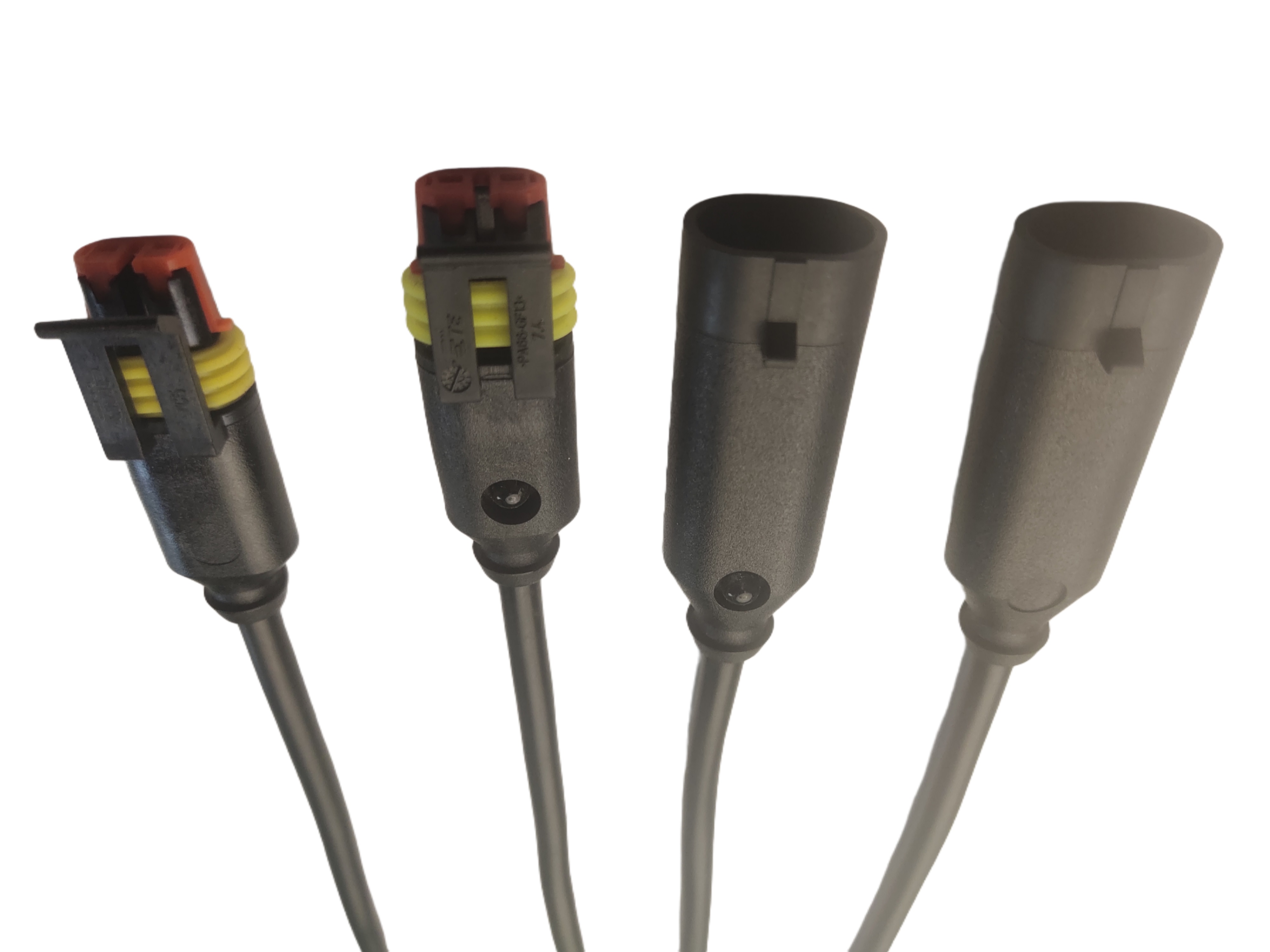

2-hole AMP282104 cast tail or lighted plug

2-hole AMP282104 with tail plug or LED plug

Performance parameters

Name: 2-hole AMP22104 LED plug

Specification model: 282104-LED-0020

Material code: TM202326

Voltage: 24 DC/AC

Working current: 4 A

Protection level: IP67

Complies with the requirements of EN175301-803

Dual-color LED red/green indicator, perfect replacement for the flyback diode

Wire: PVC 2x0.75 (AWG18) 0.2m (optional PUR cable)

Temperature resistance: Fixed: -40℃-80℃

                                     Mobile: -5℃-80℃

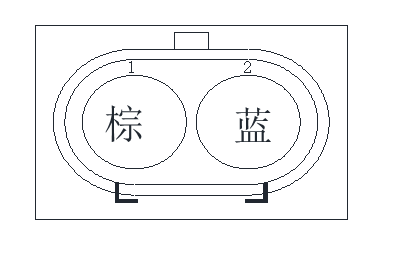

1 foot to brown wire, 2 foot to blue wire; brown to power   red light, blue to power   green light
