2-hole AMP282080-1 cast tail or lighted plug

Performance parameters

Name: 2-hole AMP282080-1 cast tail or lighted plug

Specification model: 28208-LED-0020

Material code: TM2023013

Voltage: 24 DC/AC

Working current:4 A

Protection level: IP67

Complies with the technical requirements of EN175301-803

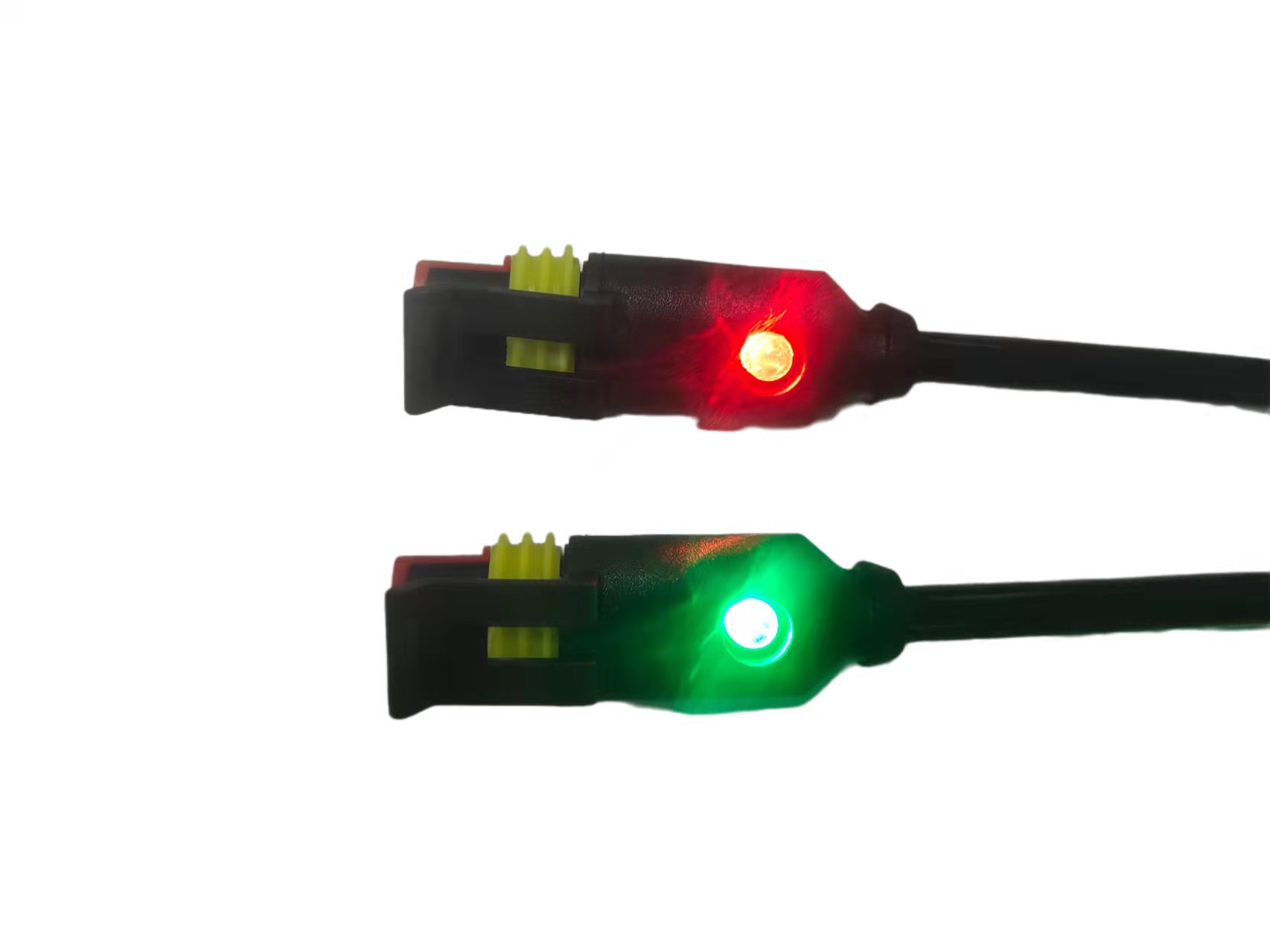

Dual- LED red/green indicator, perfect replacement for the flyback diode

Wire material: PVC 2x0.75 (AWG18) 0.2 (optional PUR cable)

Temperature resistance: Fixed: -40℃-80℃

                                       Mobile: -5℃-80

1 foot to brown wire, 2 foot to blue wire; brown to power   red light, blue to power   green light
