fontPerformance parameters

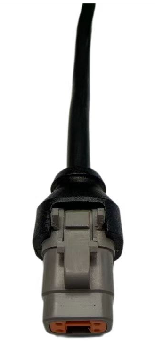

Name: Small 4-hole DEUTSCH DTM06-4S cast tail female plug
Specification model: DTM064S-0030 cast tail plug
Material code: TM2024009
Voltage: 24DC/AC
Working current:4A
Protection level: IP68
Compliant with the technical requirements of EN175301-803
Wire: PVC 4×.75 (AWG18) 0.3m
Withstand temperature: Fixed: -40℃-80℃
Mobile: -5-80℃
cable length | length specifications |
0.1Rice | 0010 |
0.3Rice | 0030 |
1Rice | 0100 |
1.5Rice | 0150 |
2Rice | 0200 |
3Rice | 0300 |
5Rice | 0500 |
