Double LED Square Solenoid Valve Plug (Universal for Single and Dual Coils)

Performance parameters

Name: Type A 18mm Dual LED solenoid valve

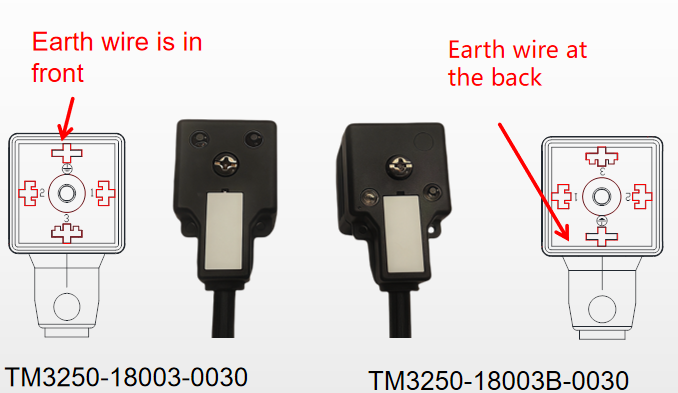

Specification model: TM3250-18003-0030

Material code: TM2023013

Voltage: 24DC/AC

Working current:4A

Protection level: IP67/ IP68 (with waterproof seal ring added to the top screw)

omplies with the technical requirements of EN75301-803

Dual LED red/green indicator lights, one indicator light represents one coil

Adaptable to controller high and low (common anode and common cathode) output indication

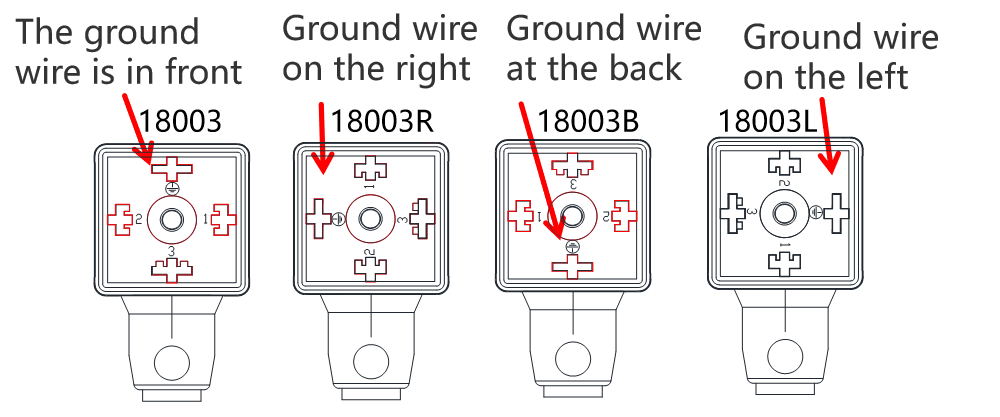

Grounding can be customized at any position

Wire material: PVC 3×0.75 (G18) 0.3Rice

Withstand temperature: Fixed: -40℃-80℃

                                       Mobile: -5℃-80

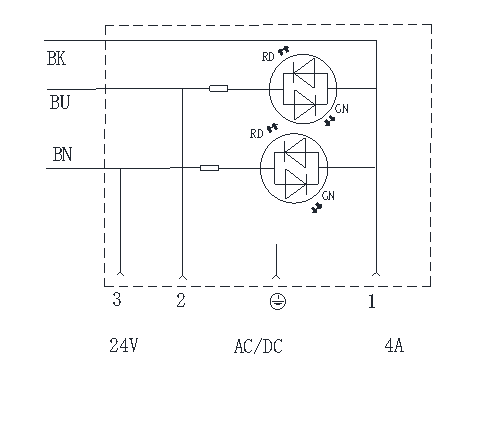

1 pin to black wire, 2 pin to blue wire, 3 pin to brown wire;

1 pin to power-, 2 pin to power red light, 3 pin to power  green light;

1 pin to power , 2 pin to power- green light, 3 pin to power- red;
