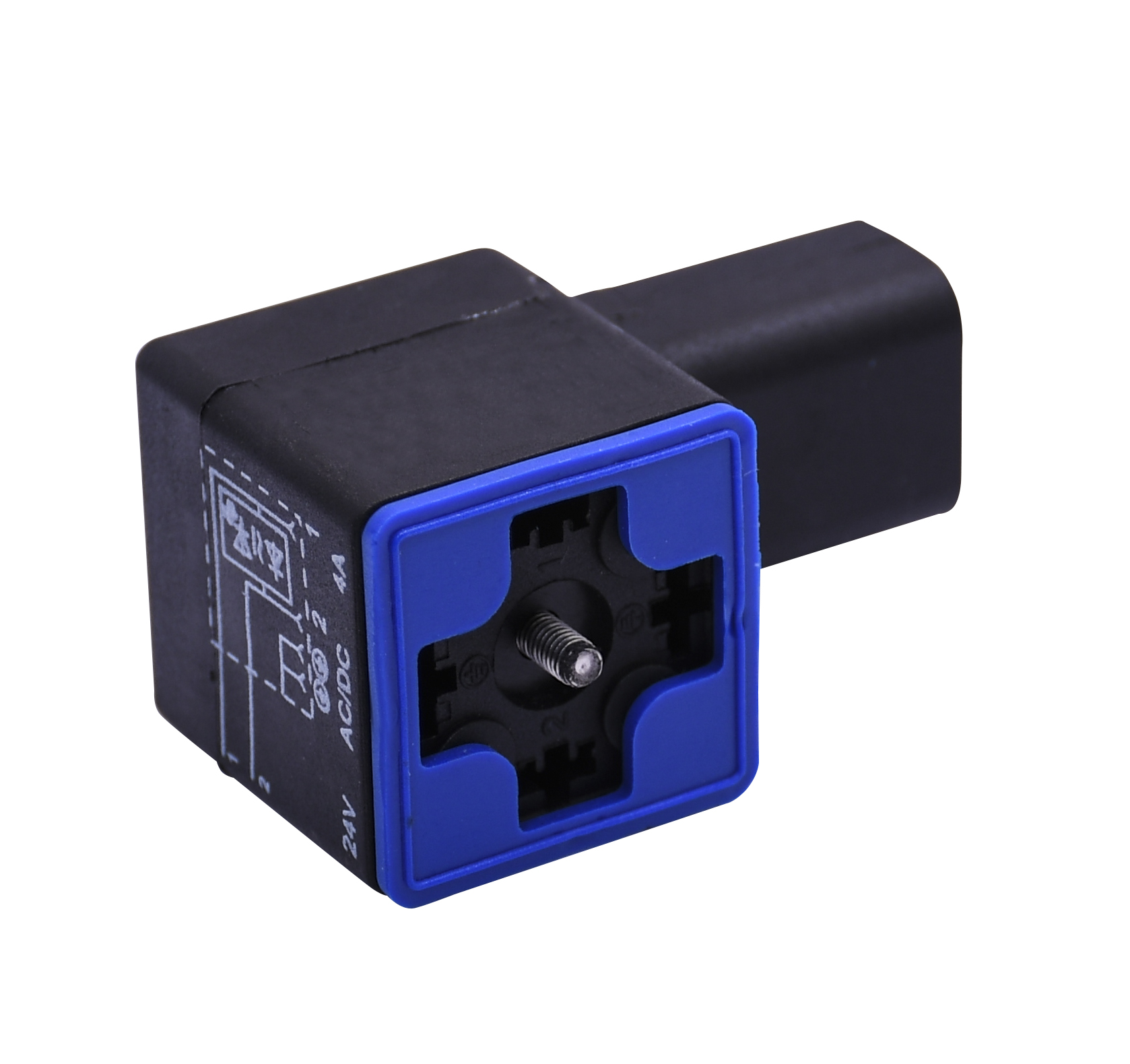

Patented product: 2-hole Deutsch to Square 4-way Electromagnetic Valve Plug
Has passed more than 0 million times of on-off test and 1 million times of plug-in test
1. Easy to install: This plug adopts an integrated design, users only need connect the Deutsch interface end with the cable and the square interface end with the electromagnetic valve, no additional tools or complex operations are required.
2. Stable connection: The internal conductor is made of high conductivity material, and the conversion shell is made of high-strength insulating material, ensuring a stable and reliable connection, reducing the risk of poor contact short circuit.
3. Strong compatibility: This plug supports standard 2-hole Deutsch interface and square electromagnetic valve interface, suitable for a variety of industrial equipment scenarios, and has strong versatility.
4. Durable: The conversion shell has waterproof, dustproof and impact resistance performance, which can work stably in harsh industrial environments a long time.
5. Cost-saving: By simplifying the installation process and improving the reliability of the connection, it reduces the cost of equipment maintenance and replacement.
Performance parameters
Name: 2-hole Deutsch to Square 4-way Electromagnetic Valve Plug
Specification model: TT to DIN3650
Material code: TM2020004
Voltage: 24DC/AC
Working current: 4A
Protection level: IP67

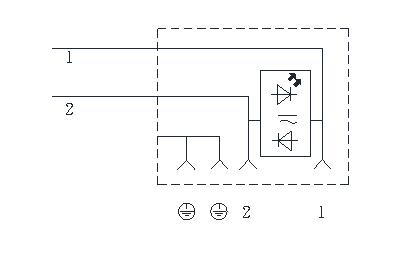

Suppression diode with overvoltage protection
The plug tail is connected to the Deutsch DT04-2P plug
Meets the technical requirements of EN175301-803

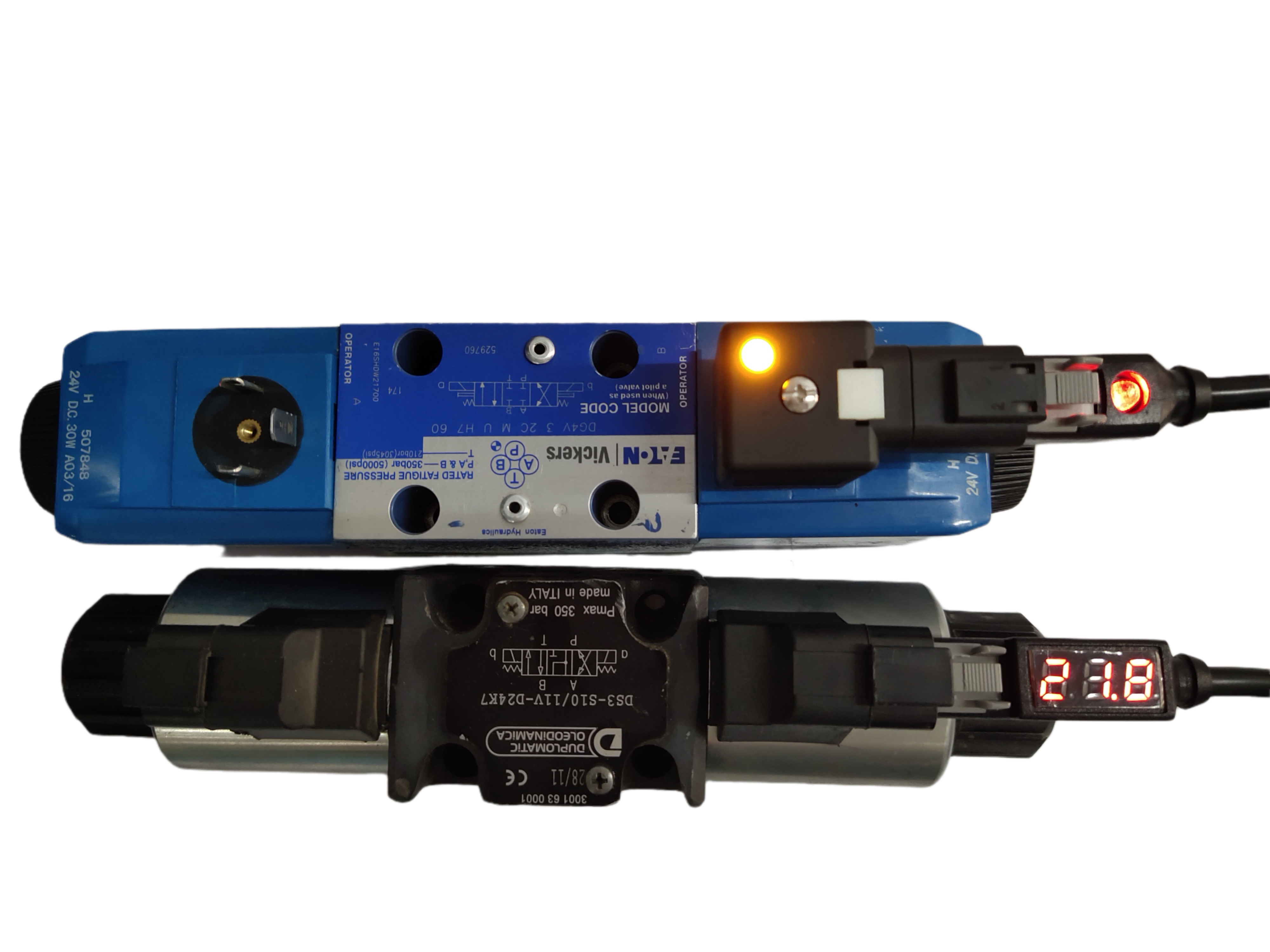

Dual-color LED red/green indicator light, a perfect alternative to theback diode
