A type 18mm plug without light electromagnetic valve

Performance parameters

Name: Type A 18mm plug without light for solenoid valve

Specification model: TM3250-18005 (or 18123) -0030

                                  TM3250-18005B (or 18124) -0030

Material code: TM2023009

Voltage 0-230V AC/DC

Working current:4A

Protection level: IP67/ IP68 (with waterproof seal ring added to the top screw)

Complies with the technical requirements of EN17301-803

Universal for all switches and sensor plugs

Wire material: PVC 3×0.75 (AWG18) 0.m

Withstands temperature: Fixed: -40℃-80℃

                                    Movable: -5℃-80℃

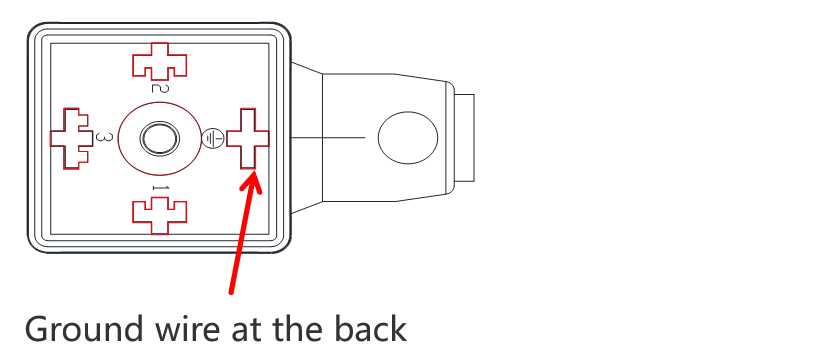

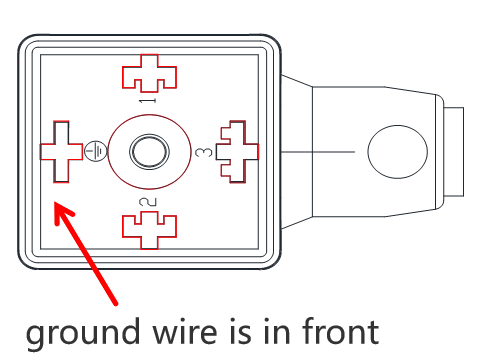

1st pin to black wire, 2nd pin to blue wire, 3rd pin to brown wire;
