Performance parameters

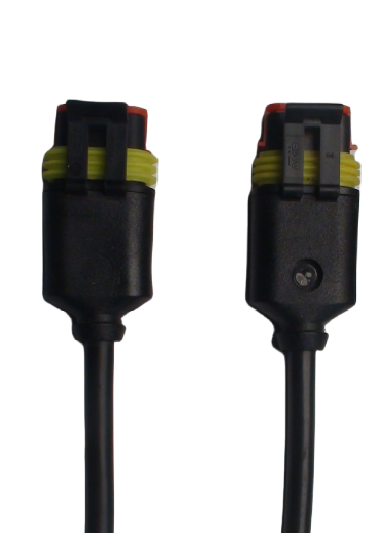

Name: 3-hole AMP282087 cast tail or illuminated plug
Specification model: 28087-LED-0020
Material code: TM2023025
Voltage: 24DC/AC
current: 4A
Protection level: IP67
Complies with the technical requirements of EN175301-803
ual-color LED red/green indicator, a perfect alternative to the flyback diode
Wire material: PVC 3×0.75 (AWG18)0.2m (optional PUR cable)
Temperature resistance: Fixed: -40℃-80℃
Mobile: -5℃-80
cable length | length specifications |
0.1Rice | 0010 |
0.3Rice | 0030 |
1Rice | 0100 |
1.5Rice | 0150 |
2Rice | 0200 |
3Rice | 0300 |
5Rice | 0500 |
